Schneider Electric – PLC Software – Modicon & Telemecanique

Modicon P230 Programming Panel

if you are new with Modicon PLC especially if you facing Old PLC and you want to upload data from PLC, you might be confuse for Software Option in Schneider PLC / Modicon PLC. here is the detail of each product such as Modsoft, Concept, ProWorx, PL7, Unity Pro, Control Expert

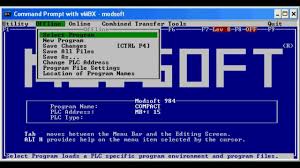

Modsoft :

PLC support by Modsoft:

Modicon 984

Modicon Compact

Momentum Controller

Modicon Quantum Controller

Modicon Microcontroller

---

Concept (Introduced: 1997):

Concept

International Standard IEC 1131-3
Concept Software is based on Windows Software. it compatible with Windows 98, Windows 2000, Windows XP, and Windows NT. Concept Software is used for programming Modicon Atrium, Modicon Compact, Modicon Momentum, and Modicon Quantum. and also support LL984 (programming ladder from legacy hardware)

 Download Concept

Modicon Quantum Controller

Modicon Momentum

Modicon Atrium

---

ProWORX NxT (Introduced: 2000)

The first introduce of ProWORX NxT is offer graphical interface to programming PLC using mouse.

So, Proworx actually offer the same things with the Modsoft with additional Windows feature (GUI – Graphical User Interface). In other words, Proworx are Windows version of Modsoft. But…. Proworx also have capabilities to program New PLC/CPU which previously designed for Concept Software (IEC).

Supported PLC: All Supported PLC in Modsoft : Momentum, Quantum, 984 Series Slot Mount, Compact, Modicon Micro 110CPU, Modicon Micro984, 984A/B/X Chassis Mount, Atrium and VME controllers).

Installation :

Installation must be done using the supplied setup program.
Start Windows NT, select "Run" on the Start menu, type "a:setup",
press OK and then follow instructions in the setup program.


File description :

C:\MEDOC

-   MEDOC.EXE     MELSEC MEDOC
-   MEDOC.ICO     Icon for MELSEC MEDOC
-   MEDOC.HLP     Help file for MELSEC MEDOC
-   MEDOC.HL2     Help file for MELSEC MEDOC
-   MEDOC.HL3     Help file for MELSEC MEDOC
-   MBAS3.BIN     A3M BASIC Interpreter
-   MBASS.BIN     A3M BASIC Interpreter
-   *.TYP     PLC type files for MELSEC MEDOC


C:\WINNT\SYSTEM32

?   MEDSOCK.DLL     WinSock Interface


Uninstallation :

Files marked with (-) above are only used by this product
and may safely be deleted without side effects for any
other product.

Files marked with (?) above <may> be used by other products
from Beijers, but may safely be deleted without side effects
for products from other vendors.

Files marked with (!) above <may> be used by products from
other vendors and should be deleted with caution.

How to copy networks between two Modsoft databases.

Published date: 04 February 2014

Goals and Symptoms

To copy networks from one Modsoft database into another Modsoft database.

Causes and Fixes

The example procedure below shows you how to copy five networks from one Modsoft database and paste them into another Modsoft database.

1 - Open the target Modsoft database and go to the Segment Status Display window screen.



2 - Select <F4-Editors>, then <F6-Library>.



3 - Enter the source Modsoft database filename and then select <F4-Editors>, then <F5-Network List>. This will open the Network List of the target Modsoft database located to the right half of the window screen.



4 - Select <F4-Edit>, then using the up and down arrow keys highlight the first network to be copied. Select <F1-Copy>and then use the arrow keys to select any remaining networks. Hit the <ENTER> key, this places them into the buffer.



5 - Go back to the Modsoft target database Segment Status Display window screen.



6 - Select the segment location where you want to paste the networks.



7 - Select <F4-Editors>, then <F5-Network List>.



8 - Select the network location number where you want the networks entered and then select <F4-Edit>, then <F3-Paste>.
