SoMochine Basic Training Manual


1. Configure PLC & HMI

communication To configure PLC and HMI communication we need software, here we will use SoMachine as a PLC program monitoring and Vijeo Designer for HMI Monitoring.

1.1 Use of SoMachine
SoMachine is software that is used to monitor PLC programs and can also be used to configure between PLC and HMI. To operate SoMachine we must have the software installer. After installing the Machine application we can operate it this way.

1. Open the SoMachine shortcut
2. After the application is open, we will create a new project by clicking "Create a new project"

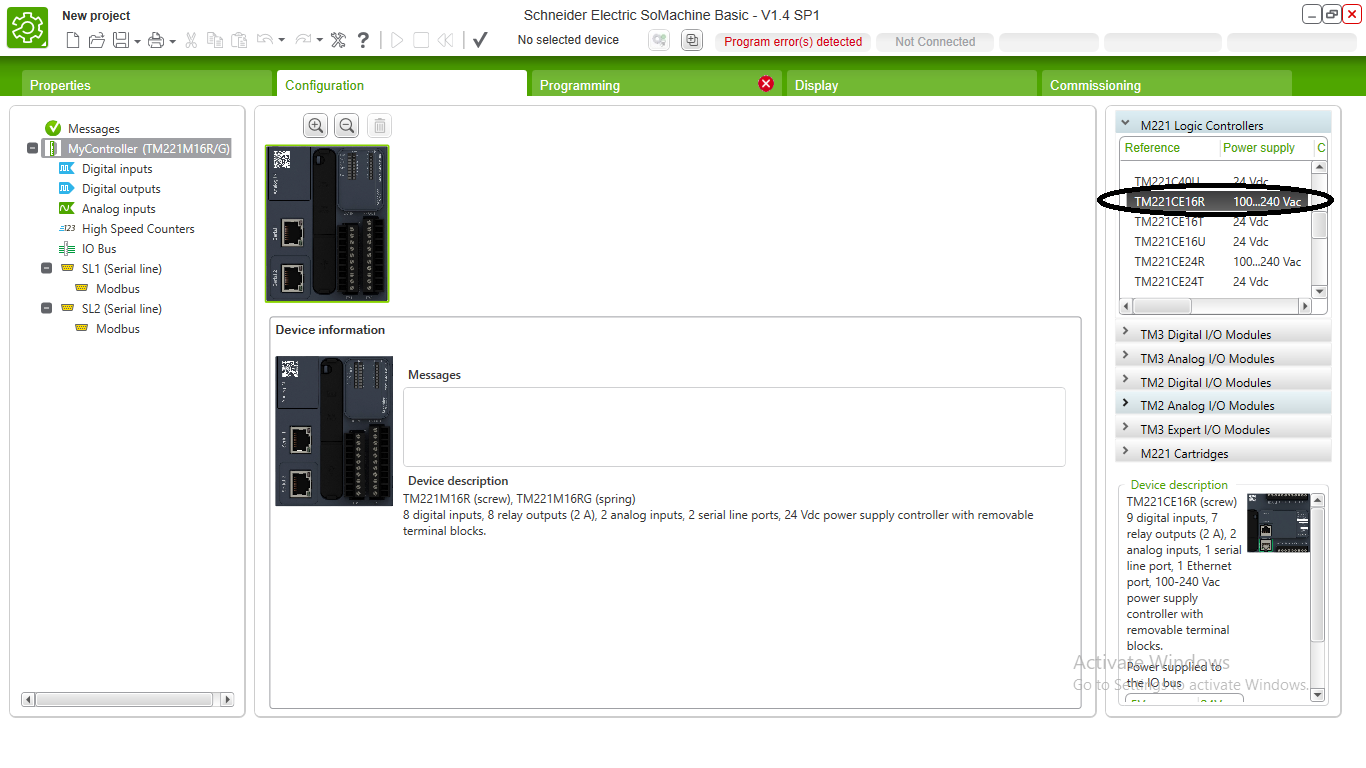

3. On the configuration tab select the PLC type used. Here we will use TM221CE16R. Then click and hold, then hover over the PLC image.

4. Still in the configuration tab, on the left, in the ETH1 section we will change the fixed ip address according to the picture below, then click "apply"

5. After that we can make a program as we want on the "programming" tab, and the image below is an example of a simple program on the PLC circuit

6. The example circuit above is a flip flop lamp with a predetermined time, and then we will configure it with HMI

7. Then "Save" in accordance with the desired name.
